Hustler Raptor XDX 54

Hustler Raptor XDX 54" Kawasaki FR691 (23HP) Zero-Turn Mower (939835)

SKU: Hustler Raptor XDX 54" Kawasaki FR691 (23HP) Zero-Turn Mower (939835)-939835
Categories : Hustler
Call For Price

Description

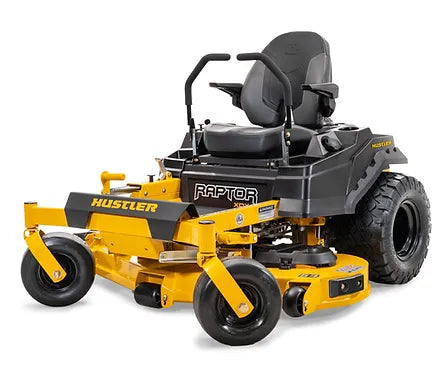

Hustler Raptor XDX 54″ Zero Turn Mower – 939835

The Hustler Raptor XDX 54" is at the top of the residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and tool-less removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck allows the XDX to mow through thick grass at top speeds. The heavy-duty XDX is backed by an industry-leading 3yr / 300hr warranty and 1yr / 300hr commercial warranty.

  • Commercial Grade Deck: Heavy-duty 11 gauge steel and front bull nose bumper design for unmatched durability. Up to 60” deck sizes available.
  • Wider Stance: Additional operator platform width provides more room and comfort for the operator
  • SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
  • Premium Seat: A premium extra high-back seat with armrests.
  • Rubber Floor Mat: Adds comfort by reducing vibration on the operator's feet and is standard on all Raptor models.
  • Premium Residential Frame: Continuous one-piece 1½ inch by 3 inches welded tubular frame not seen on any other residential mower. #1 in Class
  • Foot-Operated Deck Lift: Easily adjust the deck height between 1.5” - 4.5” with less effort than hand-operated levers from other brands.
  • Easy to Service: Flip-up seat pan, removable floor pan, vented pulley covers.
  • Exclusive BigBite™ rear tires: Hustler worked directly with the tire manufacturer on this design. You will not find them anywhere else.
  • Premium Power: The V-Twin Kawasaki® engine is the highest-rated residential engine available.


Specification:

  • Engine Manufacturer: Kawasaki FR691
  • Engine Horsepower: 23
  • Transmission: Hydro-Gear ZT-3100™
  • Fuel Capacity: 3 gal.
  • Ground Speed (FWD): Up to 8 mph
  • Cutting Width: 54"
  • Cutting Height: 1.5" to 4.5"
  • Deck Depth: 5"
  • Deck Lift: Foot Operated
  • Number of Blades: 3
  • Blade Tip Speed: 18,900
  • Spindles: Aluminum with 1" shaft and sealed ball bearings
  • Deck Engagement: Electric PTO Clutch
  • Deck Material: Fabricated 10 gauge
  • Spindle Mounts: Reinforced 11 gauge
  • IMPACT Trim Area: 11 gauge formed channel with rolled edge
  • Front Tire: 13 x 6.5
  • Drive Tire: 23 x 11-10 BigBite™
  • Warranty: 3 Year/300 hour residential or 1 Year/300 hour commercial
  • Engine Warranty: 3 Year Warranty
  • Frame: 1.50" X 3" steel tubing
  • Front Axle: Fabricated with sealed ball bearings
  • Front Caster Wheel: Tapered roller bearings - grease-able
  • Front Caster Fork: Fabricated 3/8" steel
  • Weight (lbs): 678

Width Weight Height Length
0 Inch 678 Pounds 0 Inch 0 Inch
