Description

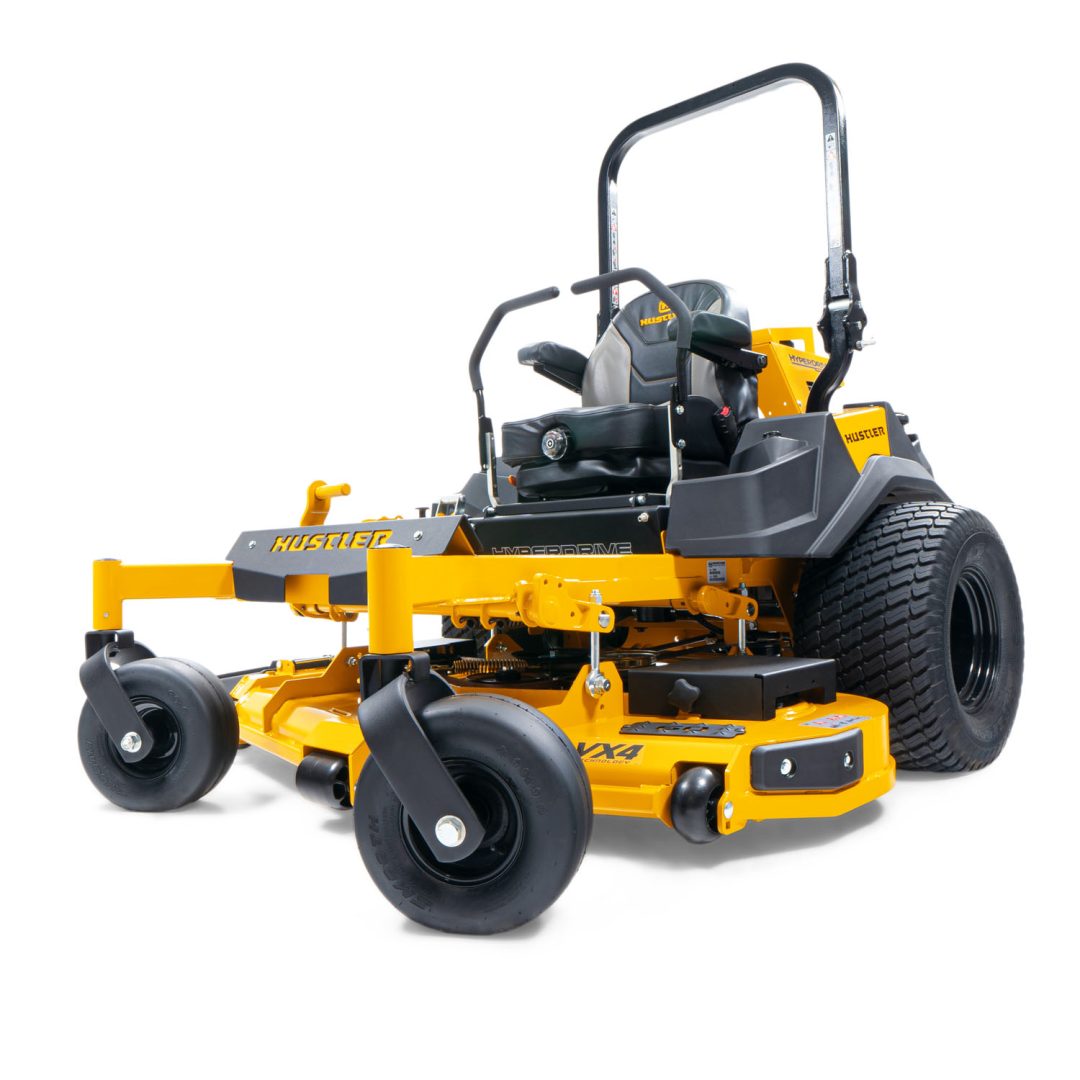

Hustler HyperDrive 60″ Kawasaki EFI Rear Discharge Zero Turn Mower – 943035

The HyperDrive® features Hustler’s exclusive HyperDrive transmission system – the largest, most durable drive system in the industry. And, it’s backed by a 3,000 hour drive system warranty.

FEATURES

• VX4® DECK: Fabricated steel deck engineered to move more grass at high speeds while maintaining cut-quality.
• HYPERDRIVE HYDRO SYSTEM: A Hustler® exclusive, industrial pumps and high torque wheel motors, 3-gallon reservoir, oil cooler and hot oil shuttle.
• HYDRAULIC SYSTEM WARRANTY: 3000-Hour pump and motor warranty unmatched in the industry.
• LARGE DRIVE TIRE; Large 26" drive tires provide a smoother ride experience.
• VANGUARD BIG BLOCK™ EFI: Optional Vanguard® Big Block™ EFI engine with Oil Guard. (500 hour oil change)
• SMOOTHTRAK™ STEERING: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
• FOOT OPERATED DECK LIFT: Foot Operated Deck Lift
• I3M SUSPENSION SEAT: High-back seat with adjustable armrests and seat back with 3-inch travel range.
• COMMERCIAL-GRADE TORQUE: Danfoss DDC-20 pumps and Parker TG280 wheel motors.
• VX4® DECK: Fabricated 7 ga. steel deck engineered to move more grass at high-speeds while maintaining cut-quality.
• EASY SERVICEABILITY: Flip-up seat pan, removable floor pan and vented pulley covers for easy and simple maintenance.

SPECIFICATIONS

GENERAL INFORMATION

• Manufacturer: Hustler Turf Equipment
• Model Year: 2023
• Model: HyperDrive 60 in. Kawasaki FX1000 EFI RD 38.5 hp
• Model Code: 943035
• Color: Yellow

BODY

• Frame: 1.5 x 3 in. steel tubing
• Seat: I3M suspension
• Seat Adjustment: Armrests and back

DRIVETRAIN

• Drive Type: Dual hydrostatic
• Transmission: Danfoss DDC-20 with Parker TG wheel motors
• Travel Speed: Up to 16 mph
• Wheels/Tires:Trim Side: 3.4 in.
• Front caster wheels: Tapered bearings and debris cap
• Front caster forks: Fabricated 1/2 in. steel
• Drive Tires: 26 x 12 - 12 in.
• Steering Tires: 13 x 6.5 - 6 in.
• Axles: Front - Fabricated with tapered roller bearings
• Parking Brake: Integrated with steering levers

ENGINE

• Engine Make: Kawasaki
• Engine Model: FX1000
• Cooling: Air
• Horsepower: 38.5 hp (Per SAE J1995)
• Displacement: 999 cc
• Air Cleaner: Heavy Duty Canister
• Fuel Capacity: 11.7 gal.

HYDRAULICS

• Hydraulic System:Lines: Stainless steel Parker Seal-Loc Technology
• Oil Cooler with 9 in. fan
• Hydraulic Reserve Capacity: 3 gal.

MEASUREMENTS

• Length: 91.5 in.
• Width: With chute up: 66 in.
• Tire to tire: 57 in.
• Height:47.8 in.
• With Rops: 73.5 in.
• Weight: 1,606 lb.

CUTTING

• Cutting Width: Rear Discharge - 60 in.
• Cutting Height: 1 - 5.5 in.

OPERATIONAL

• Deck Construction: Depth: 5.5 in.
• Fabricated 7 ga.
• Impact Trim Area: Front of deck: 11 ga. formed bump bar, Side of deck: 1.5 x 0.375 in. steel bar
• Deck Lift: Foot Operated
• Deck Engagement: Electric PTO clutch
• Spindles :Ductile cast iron with steel shaft and sealed ball bearings
• Mounts: Reinforced 7 ga. stamped disc
• Blades: 3Length: 20.5 in.
• Blade Tip Speed: 18,600
• Working Area Capacity: Productivity (acres per hour) - 7.76

OTHER

• Includes: Cup holder
• Warranty: Engine: 3 Year
• Limited: 5 Year / 1200 Hour (First 2 Years No Hour Limit)
• Industry's best: 5 year / 3000 hour (Pumps and Motors)
